Subaru Select Monitor Parameters Under Driving Conditions
Note that these are taken from EJ22s transplanted
into Volkswagen Vanagon/Westfalias; those in other vehicles will most likely
have different values, especially for drag-sensitive parameters such
as engine load. Please email me with any additions at the address below.
Dynamic Values
Here's some graphs of various EJ22 engine parameters during runs
with various running conditions.
- engine warmup

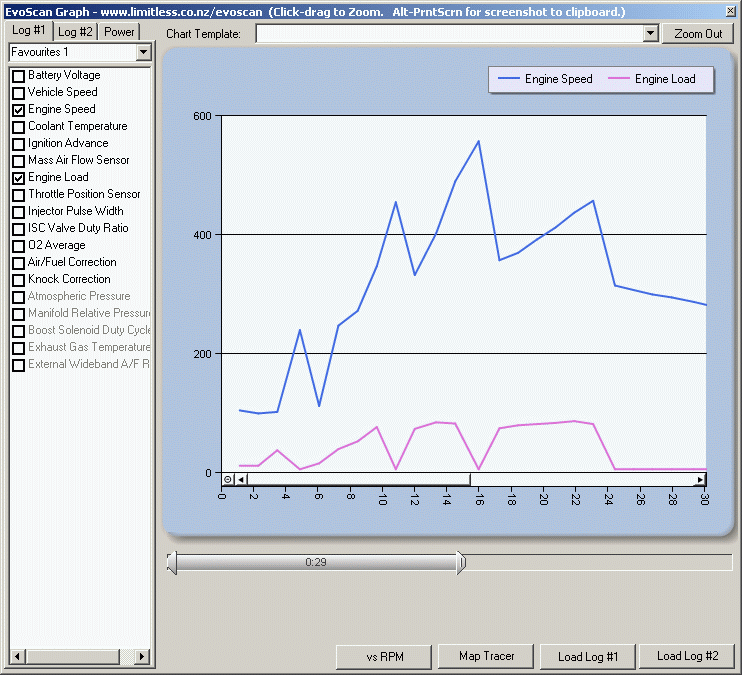

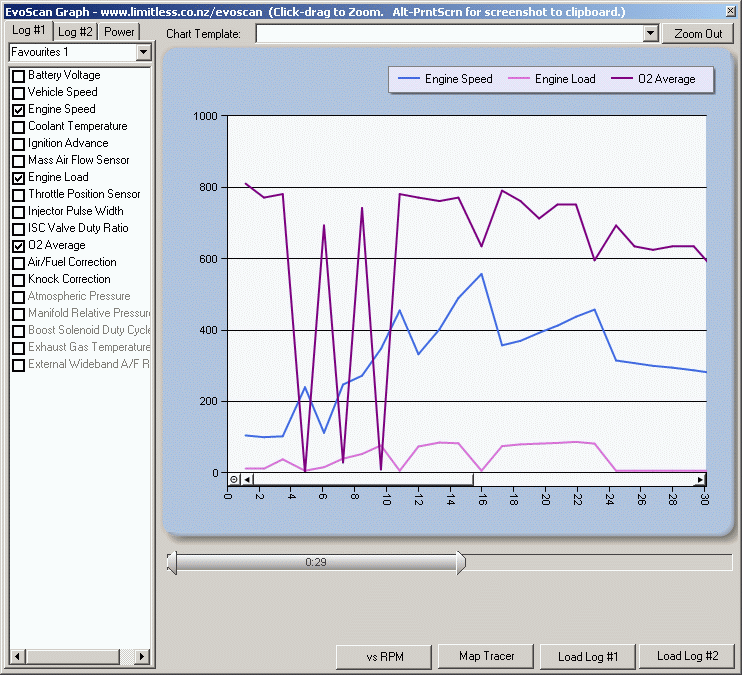

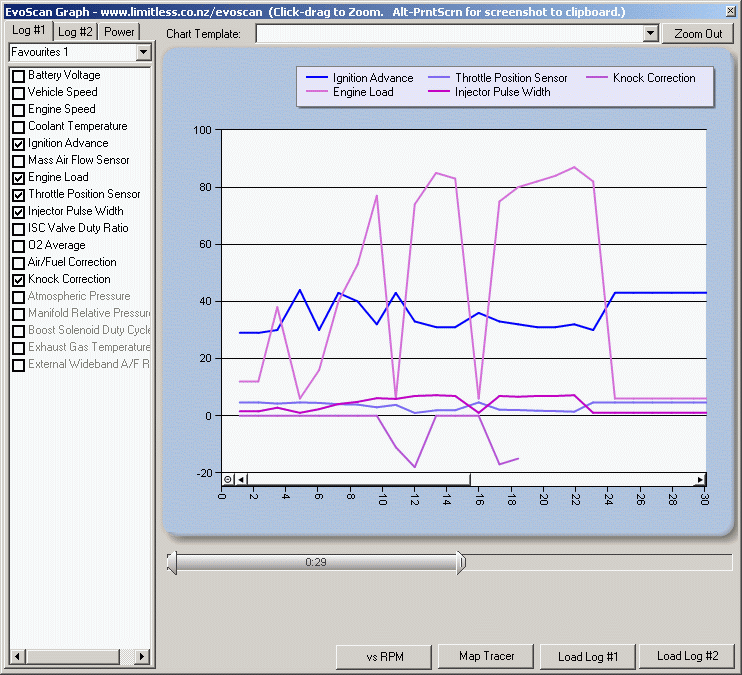

- 0 to 60 to 0, shifting through 3 gears
Static Values
These are some engine parameters for 1990-5 EJ22 engines
under various relatively steady state driving conditions.
Who Gear Grade MPH TPS RPM Tmg AFM Load IPW IAC OXl OXh FTl FTh Baro Notes
---------------------------------------------------------------------------
bc 0 0 4.8 950 27 0.9 11 1.5 25 0.6 0.8 5 7 696 idle
ts 0 0 0 4.8 700 24 1.2 17 1.8 40 0.1 0.7 5 7 752 idle
am 0 0 0 4.7 1000 29 1.2 17 1.8 46 0.2 0.8 -5 15 752 idle
bc 4 0 60 3350 42 2.5 40 3.5 32 0.1 0.8 -5 5 696 60mph steady, flat road
bc 4 2 60 3350 38 2.7 55 4.5 0.1 0.8 -5 5 696 60mph up slight grade
bc 4 4 60 3350 34 2.8 63 5.5 0.8 0.8 0 0 696 60mph up substantial grade
bc 4 -2 60 3350 43 2.2 25 2.5 0.1 0.8 -5 5 696 60mph down slight grade
bc 4 0 60 1.0 3350 30 3 70 6 0.8 0.8 0 0 696 accelerator full on, flat road
bc 4 0 60 3350 44 1 6 1 0 0 -5 14 696 full decel, flat road [*1]
ts 0 0 0 4.5 2000 45 1.7 752 2000 rpm idle
am 0 0 0 3000 45 752 3000 rpm idle
bc 0 0 0 4.8 0 0.3 85 7.2 0 0 744 engine off
Tmg: timing deg BTDC
OXl: oxygen sensor low; OXh: oxygen sensor high
FTl: fuel trim low; FTh: fuel trim high
[*1]: fuel trim steady rise -5 to 14; IAC steady drop 32 to 25
bc: bill c, 1990 EJ22/1984 Westy/MT; coolant 188; no VSS, codes 43,41, ROM 73.32.23
am: andy malec, 1991 EJ22/1985 Vanagon
ts: tom shiels, ?? / ??
|
